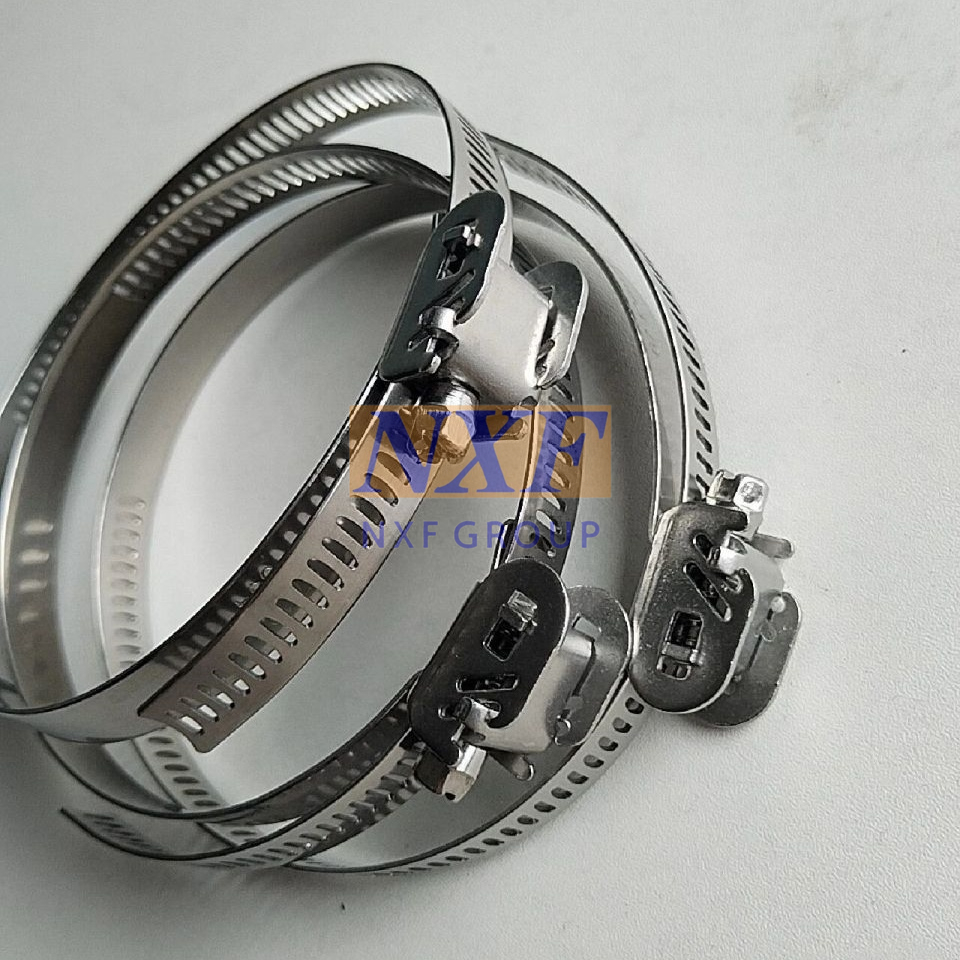

NXF ASTM A240 316H /1Cr17Ni12Mo2/31609 DN15-1200 SCH10-XXS Stainless Steel 316H Clamp Pipe Hose Clamps

Alloy 316H (UNS S31609) is a high carbon modification of Alloy 316 developed for use in elevated temperature service. The alloyhas higher strength at elevated temperatures and is used for structural and pressure vessel applications at temperatures above932°F (500°C). The higher carbon content of 316H also delivers higher tensile and yield strength than 316/316L and its austeniticstructure provides excellent toughness down to cryogenic temperatures.The corrosion resistance of Alloy 316H is comparable to Alloy 316/316L and is superior to Alloy 304/304L in moderately corrosiveenvironments. It is often used in process streams containing chlorides or halides. The alloy resists atmospheric corrosion, aswell as, moderately oxidizing and reducing environments. It also resists corrosion in polluted marine conditions.Alloy 316H is non-magnetic in the annealed condition. It cannot be hardened by heat treatment, however the material will hardendue to cold working. It can be easily welded and processed by standard shop fabrication practices.

‌Stainless steel clamp‌ is a fastener used to connect pipes of different diameters. It is often used in locations where the pipe diameter needs to be changed in the pipeline system. It is made of stainless steel material and has the characteristics of corrosion resistance, high strength, and long life, which can meet the use requirements in different environments. The main body of the stainless steel clamp is divided into two parts, upper and lower, which are connected by bolts or nuts. The inner wall of the clamp has a groove design, which cooperates with the sealing ring to achieve the sealing effect at the pipe connection. The opening sizes of the two ends of the clamp are different. One end matches the larger pipe diameter and the other end matches the smaller pipe diameter. The middle transition section presents a conical or stepped structure. Some models of clamps have reinforcing ribs on the outside to improve the pressure resistance.‌

316H Pipe Clamp Drawing
